ANTIQUE LED Outdoor light 32x32cm
Use: Exterior
Module dimensions: 320x320mm
Cabinet dimensions: 640x960mm
Brightness: 6200-6500 nits
LED type: SMD2727
Professional outdoor LED panel ANTIK Outdoor Light 32×32 cm
The ANTIK LED Outdoor Light 32×32 cm series is designed for outdoor applications where high brightness, reliable operation and durable construction are required. It offers robust modules made of cast aluminum, excellent visibility even in direct sunlight and easy maintenance thanks to front service.
Parametre série ANTIK LED Outdoor Light 32×32 cm
Séria ANTIK LED Outdoor Light 32×32 cm je navrhnutá pre vonkajšie inštalácie, kde je dôležitá maximálna viditeľnosť, nízka hmotnosť a jednoduchá údržba. Kombinuje vysoký jas a odolnú konštrukciu z liateho hliníka, vďaka čomu je vhodná pre reklamné LED steny, totemy a informačné systémy.
| Parameter | 5.92 mm | 8 mm |
|---|---|---|
| Rozostup pixelov | 5.92 mm | 8 mm |
| Hustota pixelov | 28 476 px/m² | 15 625 px/m² |
| Sken | 1/7 | 1/3 |
| Rozlíšenie modulu | 80 × 40 | 64 × 32 |
| Rozlíšenie skrinky | 110 × 169 | 80 × 120 |
| Použitie | Exteriér | |
| Rozmer modulu | 320 × 320 mm | |
| Rozmer skrinky | 640 × 960 mm | |
| Jas | 6200 – 6500 nitov | |
| Typ LED | SMD2727 | |
High brightness and reliable image
ANTIK LED Outdoor Light 32×32 cm is designed for outdoor installations where high visibility is required even in direct sunlight. The brightness of 6200–6500 nits ensures readable content throughout the day , including in difficult lighting conditions. SMD2727 LED technology provides a uniform image, stable colors and high weather resistance. The panel is suitable for advertising areas, facade LED walls, gas stations and digital information systems.
- 6200-6500 nits brightness for maximum outdoor visibility
- SMD2727 LED chips designed for outdoor operation
- Stable colors and uniform image in any weather
- Suitable for advertising displays, facades and information panels
Lightweight and strong cast construction for quick assembly

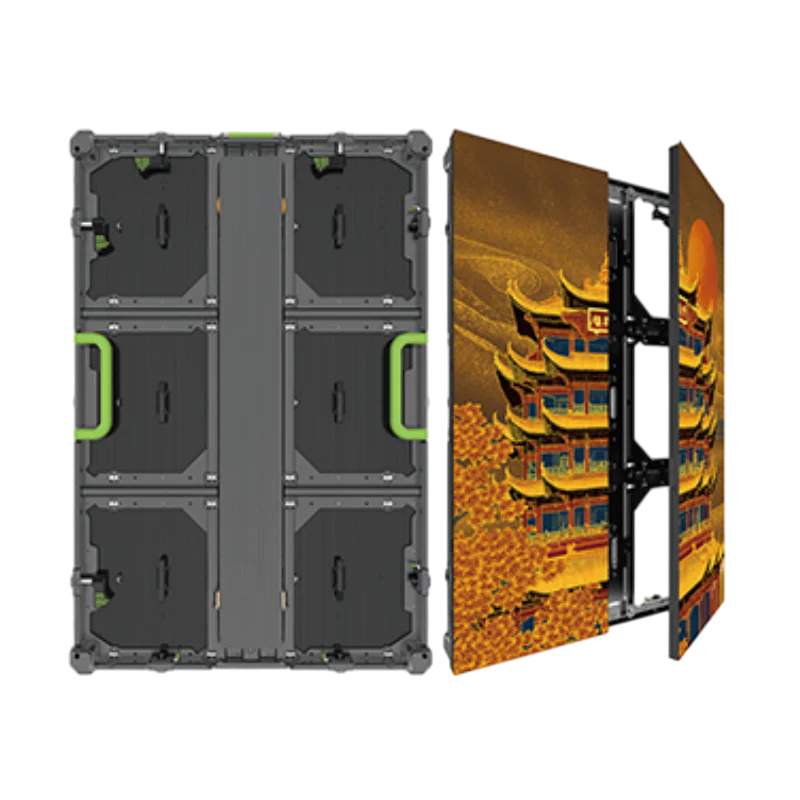

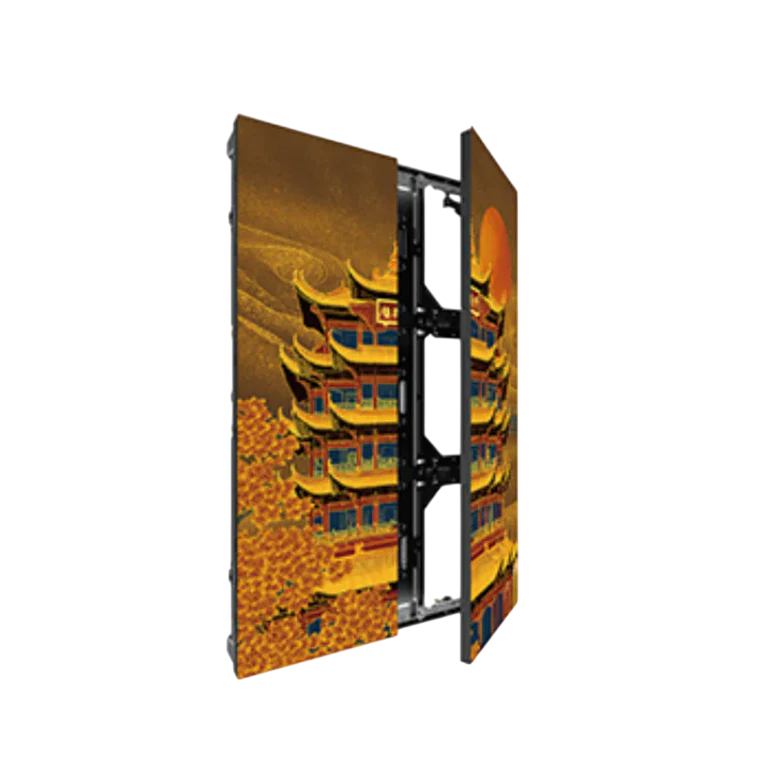

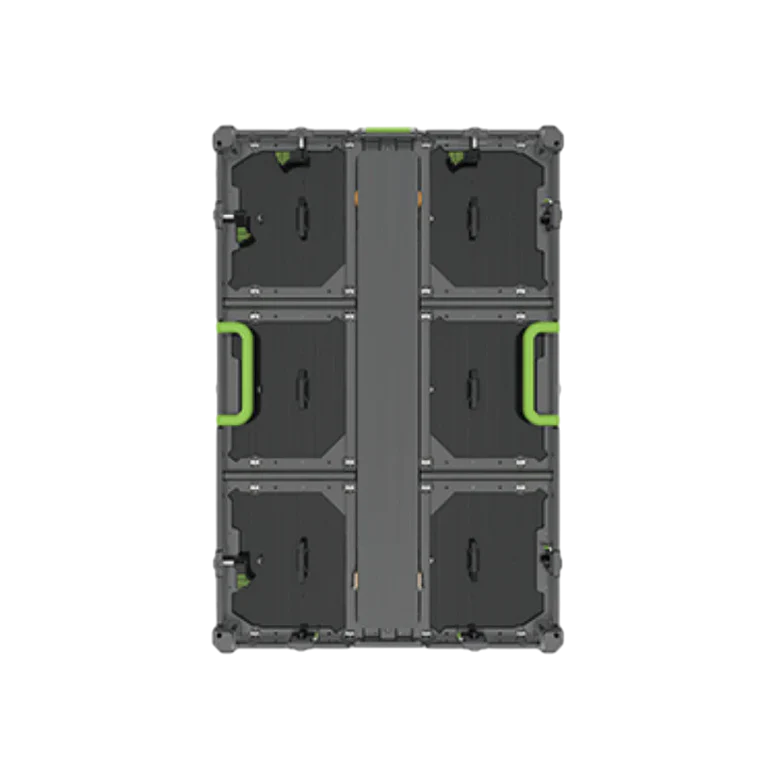

The panel uses a die-cast aluminum construction that combines low weight, strength and precise connection between individual cabinets. The 320×320 mm module and 640×960 mm cabinet allow for easy assembly of larger LED assemblies without difficult handling. Thanks to the solid mechanics, the panel is suitable for both permanent and mobile installations.
The construction is designed to withstand temperatures, vibrations and long-term outdoor operation .
- Solid die-cast aluminum construction
- Modular dimensions 320×320 mm for flexibility
- Cabinet 640×960 mm for large LED walls
- Suitable for both fixed and mobile outdoor sets
Variable pixel pitch and easy front access
The series offers two pixel pitches — 5.92 mm and 8 mm — that allow you to choose the optimal resolution according to the viewing distance. Front serviceability greatly simplifies maintenance, as the modules can be removed directly from the front without dismantling the structure. 1/7 and 1/3 scanning modes ensure a stable image in both configurations. The panel can be used for both smaller signs and large billboard assemblies.
- Pixel pitch 5.92 mm or 8 mm
- Front service for quick and easy maintenance
- Module resolution 80×40 / 64×32
- Cabinet resolution 110×169 / 80×120
Frequently asked questions: ANTIK LED Outdoor light 32x32cm
Is the panel intended for outdoor use?
Yes, this model is designed for outdoor use and uses SMD2727 LED technology, which is suitable for year-round outdoor use.
What brightness does the panel provide?
The panel reaches a brightness of 6200-6500 nits , which ensures very good visibility even in direct sunlight.
What is the size of the module and the cabinet?
The module has a size of 320 × 320 mm and the cabinet has a size of 640 × 960 mm .
What pixel pitches are available?
The series supports two configurations:
- 5.92 mm
- 8mm
What is the pixel density of each type?
Pixel density:
- 28476 px/m² at 5.92 mm
- 15625 px/m² at 8 mm
