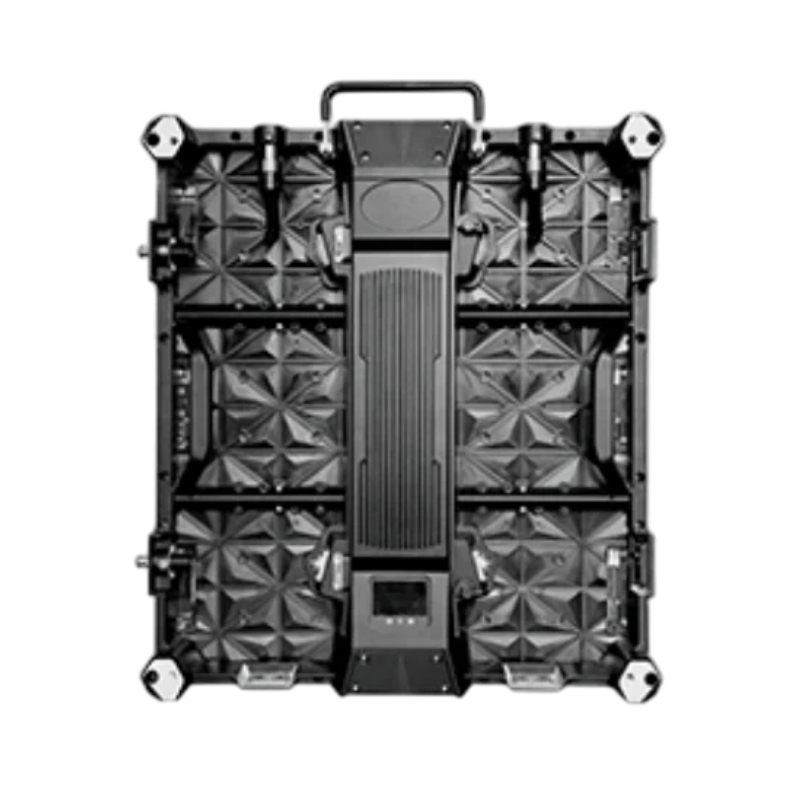

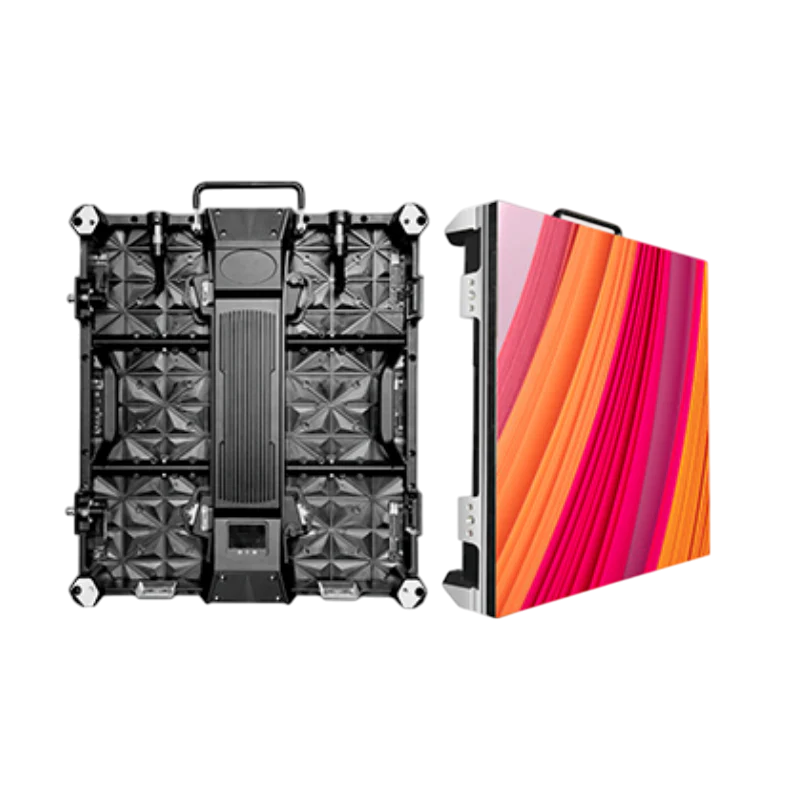

ANTIK LED Outdoor 24x18cm
Product type: Exterior
Module dimensions: 240x180mm
Cabinet dimensions: 480x540x90mm
Brightness: 800-1000 nits
LED Configuration: 1R1G1B
LED type: SMD1515
Weight: 8kg
Grayscale: 16 Bit
Contrast: > 5000:1
Refresh rate (Hz): >3840
Input voltage: AC110Vz-AC220V
IP protection level: IP65
Installation method: Rear side
Service: From the front or back
Power consumption (average): ≤180-220
Power consumption (max): ≤550-650
Professional outdoor LED panel ANTIK Outdoor 24×18 cm
ANTIK LED Outdoor 24×18 cm brings a modern solution for large-area outdoor displays with an emphasis on reliability and easy maintenance. The modular design allows for the creation of assemblies of various sizes , while high-quality workmanship ensures a long service life even with continuous operation.
Parametre série ANTIK LED Outdoor
Séria ANTIK LED Outdoor je navrhnutá na poskytovanie nadštandardného vizuálneho zážitku v exteriéri s vysokým výkonom a dlhou životnosťou. Kombinuje robustný dizajn, kvalitné LED moduly a energetickú efektivitu, vďaka čomu je ideálna pre rôzne vonkajšie inštalácie a profesionálne projekty.
| Parameter | KH1.87 | K1.87 | K2 |
|---|---|---|---|
| Rozostup pixelov | KH1.87 | K1.87 | K2 |
| Hustota pixelov | 284 444 px/m² | 250 000 px/m² | 160 000 px/m² |
| Sken | 1/32 | 1/30 | 1/24 |
| Rozlíšenie modulu | 128 × 96 | 120 × 90 | 96 × 72 |
| Rozlíšenie skrinky | 256 × 288 | 240 × 270 | 192 × 216 |
Robust construction ready for outdoor use
ANTIK LED Outdoor panel is designed to operate reliably even in harsh outdoor conditions and withstand long-term loads. The design of the module and the cabinet is optimized for stability, safe installation and easy service. IP65 protection ensures protection against rain and dust, making the panel suitable for year-round outdoor operation.
- IP65 rating for protection against rain and dust
- Module dimensions: 240 × 180 mm
- Cabinet dimensions: 480 × 540 × 90 mm
- Designed for outdoor use
- Stable operation in various weather conditions
- Service from the front or rear
Modular system for professional applications
The panel is designed as part of a modular assembly that allows the creation of LED areas of various sizes and resolutions according to the technical requirements of the project. Individual modules and cabinets are optimized to be easily combined, assembled and serviced, ensuring practical integration into advertising, urban or information solutions.
- Module resolution: 128×96 / 120×90 / 96×72
- Cabinet resolution: 256×288 / 240×270 / 192×216
- Installation method: rear side
- Service: from the front or back
- Power consumption (average): ≤180–220 W
- Power consumption (max): ≤550–650 W
- Input voltage: AC110V–AC220V
- Weight: 8 kg
Accurate image and stable performance
The panel provides high image quality thanks to the combination of SMD1515 LEDs and various pixel pitch configurations, allowing you to choose the ideal solution for the desired viewing distance. Stable image presentation is supported by high brightness, contrast and fast processing, ensuring clear visual output even in changing outdoor lighting conditions.
- LED type: SMD1515
- LED configuration: 1R1G1B
- Brightness: 800-1000 nits
- Contrast: > 5000:1
- Grayscale: 16-bit
- Refresh rate: >3840 Hz
- Pixel pitch: KH1.87 / K1.87 / K2
- Pixel density: 284,444 / 250,000 / 160,000 px/m²
- Scan: 1/32 / 1/30 / 1/24
Frequently asked questions: ANTIQUE LED Outdoor 24x18cm
What brightness does the panel offer outdoors?
The panel reaches a brightness of 800-1000 nits , which ensures good readability even in daylight.
What type of LED technology does the panel use?
The panel is equipped with SMD1515 LEDs in 1R1G1B configuration.
What are the available pixel pitches?
The panel is available in three versions: KH1.87 , K1.87 and K2 .
How does pixel density differ between versions?
- KH1.87: 284,444 pixels/m²
- K1.87: 250,000 pixels/m²
- K2: 160,000 pixels/m²
What type of scan does the panel use?
Depending on the version, the panel supports 1/32 , 1/30 or 1/24 scan.
