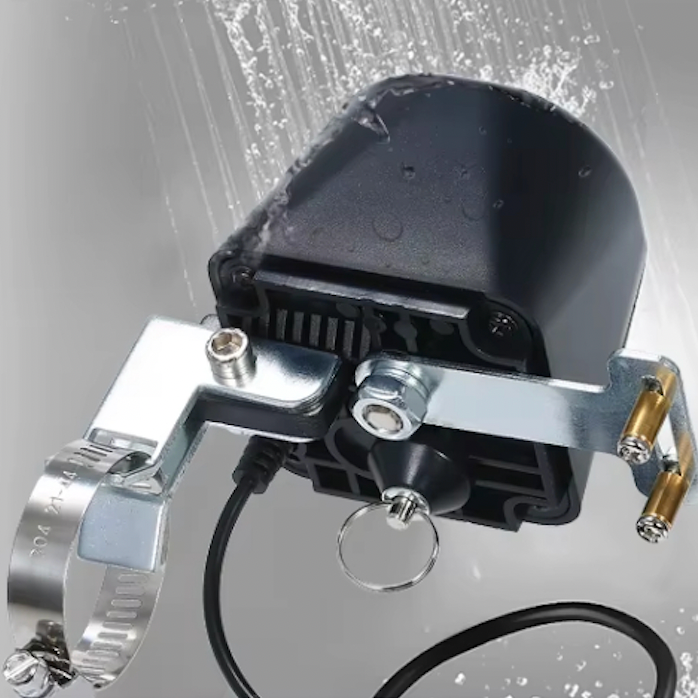

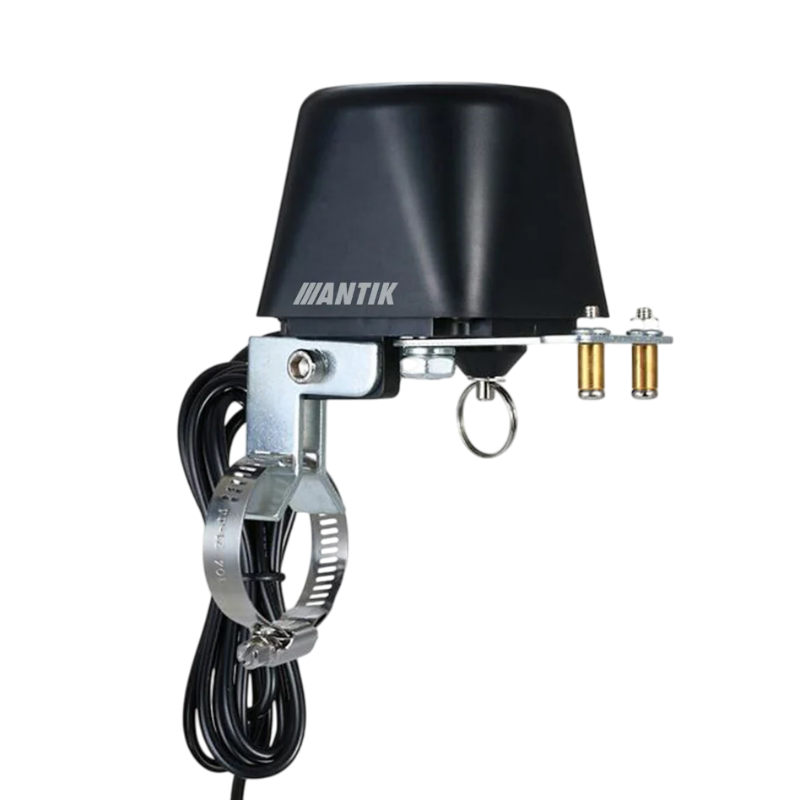

ANTIK Smart Pipe Valve Control Motor ATK-SHPVA1
- Supply voltage: DC 12V/1A
- Power consumption: low consumption, suitable for continuous operation
- Power adapter: included (12 V / 1 A)
- Wireless communication: WiFi 2.4 GHz
- Control: Antik SmartHome mobile application (Android, iOS)
- Integration: support for automation scenarios
- Manual control: via lever in case of power failure
- Torque: 30 – 40 kgf cm
- Valve closing time: 5 – 10 s (depending on valve size and resistance)
- Valve opening time: 5 – 10 s (symmetrical response, stable engine operation)
- Supported valve dimensions: 1/2" (DN15) 3/4" (DN20) 1" (DN25) 1.25" (DN32)
- Valve type: ball valves with lever handle
- Maximum valve pressure: 1.6 MPa
- Operating temperature: –10°C to +60°C
- Operating humidity: ≤ 95% RH (non-condensing)
- Application: automated closing/opening of water or gas supply
- Device dimensions (W × D × H): 70 × 105 × 150 mm
- Device weight: 510 g
- Package dimensions: 130 × 120 × 88 mm
ANTIK SmartHome Intelligent pipe valve control motor is a practical device that you can rely on when you need to quickly close the pipe and stop the water or gas supply. The device supports Android and iOS operating systems. This smart valve closer is powered by 12V. It is driven by a motor with sufficient power, capable of opening/closing even more massive valves. A big advantage of this model is also its fast reaction time, as the valve is closed within 10 seconds. The application uses a 2.4 GHz wireless WiFi network to connect to the Internet. In the event of a power outage, the device can also be controlled manually.
ANTIK Smart Pipe Valve Control Motor ATK-SHPVA1: Datasheet in .PDF can be downloaded HERE.
Engine performance and reliability
The device is equipped with a high-torque motor, which allows reliable control of even larger and stiffer ball valves. Stable mechanical operation ensures uniform opening and closing without jerking or excessive strain on the drive. Thanks to its fast response, the motor can close the water or gas supply in a matter of seconds in the event of an accident or leak, thus minimizing the risk of damage.
- Torque: 30 – 40 kgf cm, suitable for reliable operation of standard ball valves with higher mechanical resistance
- Valve closing time: 5 – 10 s (depending on valve size and resistance)
- Valve opening time: 5 – 10 s (symmetrical response, stable engine operation)
- Supported valve dimensions: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.25" (DN32)

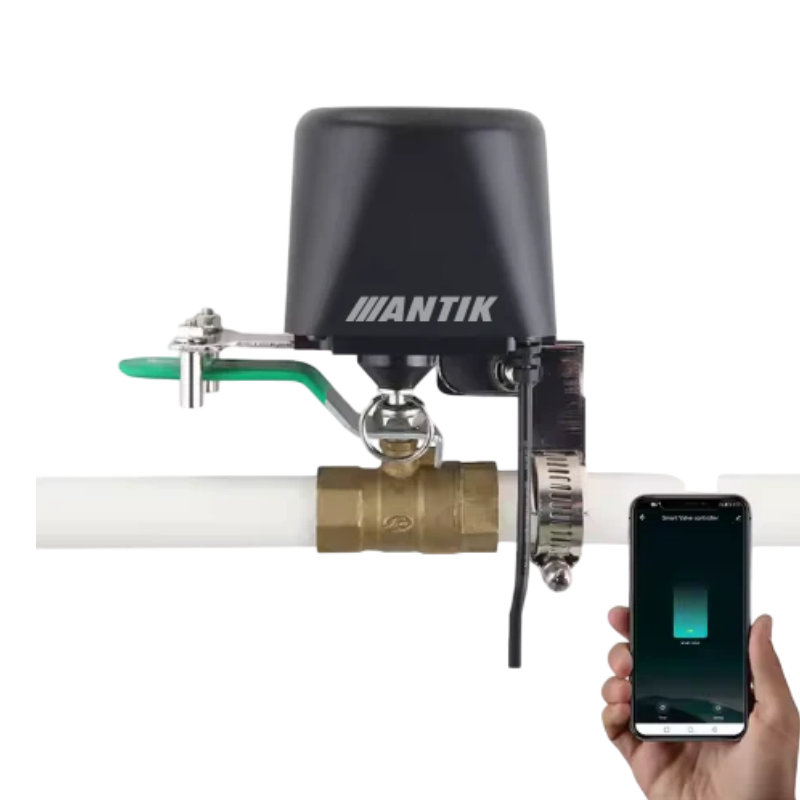

Intelligent control of pipeline valves
ANTIK SmartHome intelligent motor provides a modern way to effectively control the water or gas supply. It allows convenient remote control via a mobile application, while its functions can be combined with other smart devices in the home. Thanks to this, the valve becomes part of a comprehensive automation ecosystem and responds exactly to your needs.
- Remote control via Android and iOS app
- Possibility of connection with flood sensors and other smart devices
- Automation scenarios – e.g. immediate valve closure upon detection of flooding
- Voice control via Amazon Alexa, Google Assistant or IFTTT
- Time planning – possibility to set the valve opening and closing according to the schedule (morning, lunch, evening)
- Manual control remains even in the event of a power failure
Connectivity and control
The motor uses a 2.4 GHz wireless WiFi connection, which offers a stable signal and the ability to control the device from anywhere via the Internet. Control is via the Antik SmartHome APP mobile application, which allows you to not only turn the device on and off, but also set up automations and receive notifications.
- Communication via 2.4 GHz WiFi with stable connection
- Control via Antik SmartHome APP
- Possibility of remote control and remote intervention
- Support for notifications about device status and automation launch

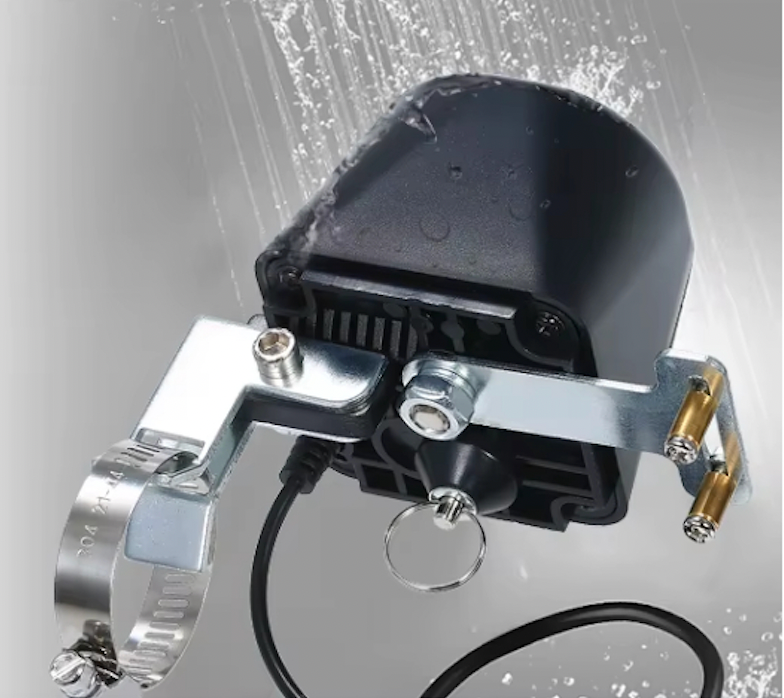

Quality and durability
The device is designed to operate reliably even in more demanding environments. The robust construction can handle high humidity and a wide range of operating temperatures. Therefore, you can use the motor not only in standard domestic conditions, but also in technical rooms or smaller industrial operations.
- Operating temperature: -10°C to 60°C for year-round reliability
- Operating humidity: ≤ 95% RH resistant to harsh conditions
- Maximum valve pressure: 1.6 MPa for wide application

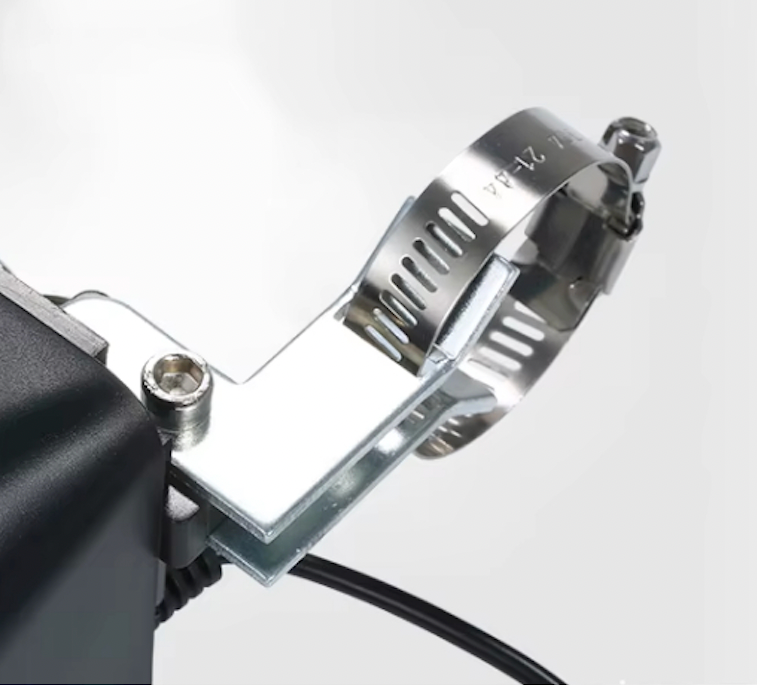

- High quality workmanship - solid metal brackets and reliable mounting resistant to mechanical stress
- IP65 certification – dustproof construction and splash water resistance
Power supply and installation
The device uses a safe DC 12V/1A power supply, which ensures stable motor operation and low energy consumption during continuous operation. Installation is simple and does not require special interventions, making the device easy to integrate into an existing SmartHome system.
- Supply voltage: DC 12V/1A
- Energy-saving operation suitable for permanent connection
- Stable performance during long-term operation
- Easy installation and connection without the need for wiring modifications
Package contents and technical information
Thanks to its intuitive connection and easy operation, the device is also suitable for users without technical knowledge. The package includes all necessary accessories for immediate installation and commissioning.

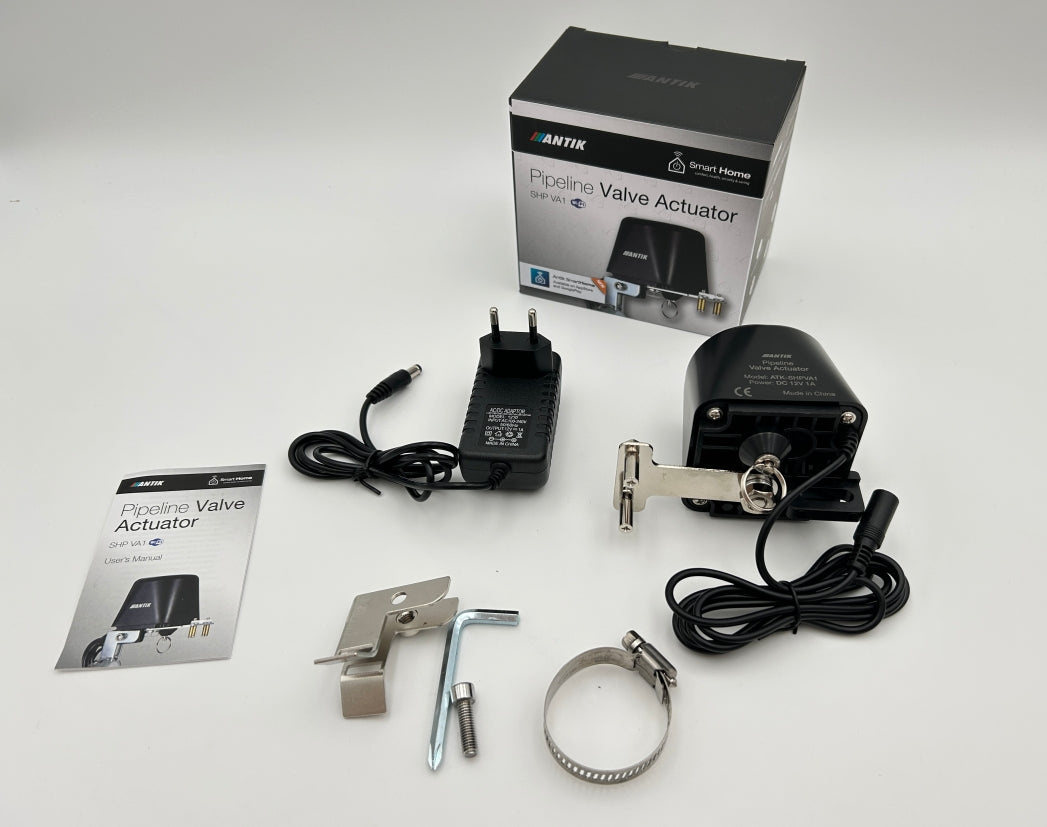

Package contents:
- 1× Valve control
- 1× User manual
- 1× Power adapter 12V / 1A
- 1× Metal buckle
- 1× Mounting screw
- 1× Allen + Phillips screwdriver
- 1× Bracket for mounting to the valve
Technical information:
- Warranty: 2 years
- Device dimensions (W×D×H): 70 × 105 × 150 mm
- Device weight: 510 g
- Package dimensions: 130 × 120 × 88 mm
- Application: control of ball valves for water or gas
Scene: Flood protection in the event of a washing machine failure
A modern home requires solutions that can prevent problems and increase comfort at the same time. A flood sensor located under the washing machine continuously monitors the environment and, when water is detected, immediately sends a signal to the ANTIK SmartHome system. The intelligent motor then closes the main water supply within a few seconds, while the user receives a notification in the mobile application. The entire process takes place fully automatically and without the need for intervention, giving you the certainty that your home is protected even during your absence.
For this scene you need:
– ANTIK SmartHome intelligent motor for valve control
– ANTIK Smart water level detector (located under the washing machine)
– ANTIK SmartHome application (Android / iOS)
– (optional) Smart socket to disconnect the washing machine from electricity
For more details, watch the accompanying video
Step into the world of Smart technologies with us, where we will introduce smart products from the areas of home, security, comfort, health, camera systems and many other areas. Choose from a variety of smart devices that will reliably secure your home, business, garage or cottage.
Download the ANTIK SmartHome® app
With the ANTIK SmartHome® app, you have control over the water or gas supply in your home or business. You can control the valve manually via your mobile phone, set time schedules, or connect it to automated scenes.
In the app you can:
- Control the valve remotely – instantly open or close with a single touch
- Set schedules – regularly open or close the valve at specific times and days
- Activate countdown – automatic shutdown or power-on after the selected time has elapsed
- Connect the valve to other devices – for example, a flood or gas sensor for immediate response
Multi-column

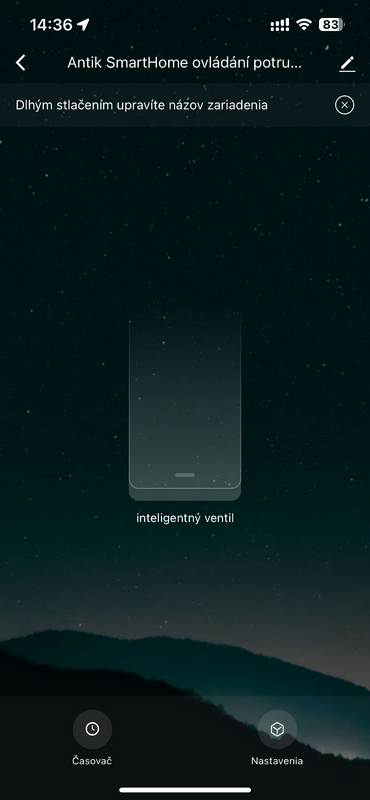

Smart valve main control
The home screen of the ANTIK SmartHome application provides a central panel for easy and quick control of the smart valve. Here the user sees basic information and has direct access to the main functions of the device.
- Graphical visualization – a clear representation of the current valve status, immediately showing whether it is open or closed
- Device name editing – ability to customize the valve name as needed with a simple long press
- Bottom menu – offers quick access to the timer and advanced settings that allow you to adapt the valve operation to different scenarios
This screen serves as a starting point for daily valve operation and adjustment.
Setting a schedule
This screen allows you to set up a detailed schedule for the automatic opening and closing of the smart valve. The user can select the specific time and days of the week when the valve should be controlled according to the schedule.
- Time selection – precise setting of the hour and minute when the valve should open or close Day selection – easy marking of the days during which the schedule will be active
- Clear view – list of all added plans with the option to quickly edit or delete
This function increases the comfort of use, as the valve operates automatically according to the selected schedule without the need for manual intervention.

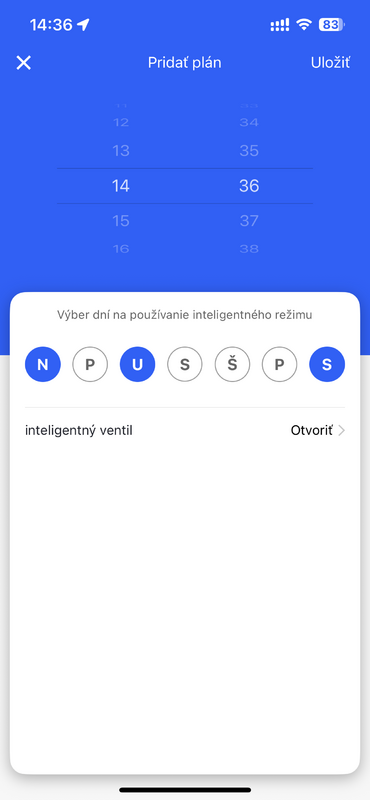

Adding a schedule
This screen is used to manually set the schedule for the smart valve. The user can specify the exact hour and minute when the valve should automatically open or close.
- Hour and minute selection – easy setting of the exact time in a clear wheel interface
- Countdown mode – option to trigger the valve after a certain time instead of a fixed schedule
- Easy to start – the scheduled action is activated with a single touch of a button
This feature allows flexible adaptation to the user's current needs, whether it is one-time or recurring tasks.

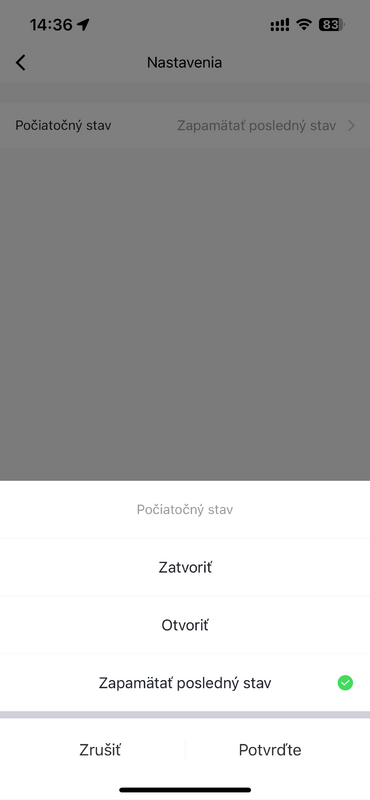

Setting the initial state
This screen allows you to define the behavior of the smart valve after power is reconnected. This feature gives the user control over what state the valve will remain in after a power outage.
- Close – the valve will automatically switch to the closed state when power is restored
- Open – the valve is set to the open state after power is turned on
- Remember last state – the device will retain the last setting, which is practical in the event of an unexpected power outage
This configuration increases safety and reliability because the valve always responds according to the user's preferences.
Automation and smart scenes
Automation is one of the most powerful features of a smart home. It allows devices to respond automatically based on specific inputs – such as motion, temperature changes, time, or manual instructions.
Its greatest advantage is the ability to connect multiple devices and create intelligent links between them. Thanks to automation, separate devices become a connected ecosystem that works logically and increases the overall comfort, security and efficiency of the home.
1. Manual start
The scene is triggered by manually pressing a button in the app or on the physical switch.
2. When the weather changes
Automation is triggered when external conditions change (e.g. temperature, humidity, wind).
3. Timetable
The scene will start at a specific time or according to a set recurring schedule.
4. When the device status changes *important
Automation is triggered in response to a change in another device – a motion sensor, door, camera, or other device.
📌 Automation parameters for this product can be found in the table below ↓
Automatizácia pre ANTIK Smart Motorček ovládania potrubného ventilu ATK-SHPVA1
Automatizácia umožňuje nastaviť pravidlá, podľa ktorých ventil reaguje automaticky – na základe času, senzora alebo udalosti v domácnosti. Automatizáciu možno nastaviť pomocou nasledujúcich parametrov:
| Parameter | Hodnota | Čo robí | Príklad v scéne |
|---|---|---|---|
| Spínač | Otvorené, Zatvorené | Otvára alebo zatvára ventil. | Keď je detegovaný únik vody, potom zatvorím ventil. |
| Časovač | 0–86400 sekúnd | Nastaví odpočet pre automatické zatvorenie ventilu po uplynutí času. | Ak je zapnutý zavlažovací systém, potom nastavím časovač na 1 hodinu. |
| Stav po reštarte | Zatvoriť, Otvoriť, Zapamätať si posledný stav | Určuje, ako sa má ventil správať po výpadku a obnovení napájania. | Ak vypadne prúd, ventil sa vráti do stavu „Zatvoriť“. |
Frequently Asked Questions: ANTIK Smart Pipe Valve Control Motor
What power supply does the valve require?
The device is powered by a safe DC 12V / 1A voltage. A power adapter is included in the package.
What valves are supported?
The most commonly used ball valves with dimensions 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.25" (DN32) are supported.
Is the valve suitable only for water, or also for gas?
The valve is designed to control the supply of water and gas . It is used, for example, in domestic distribution systems, in rented apartments or in smaller commercial premises.
What is the engine's power?
The motor reaches a torque of 30 - 40 kgf·cm , which guarantees reliable control of even more robust valves.

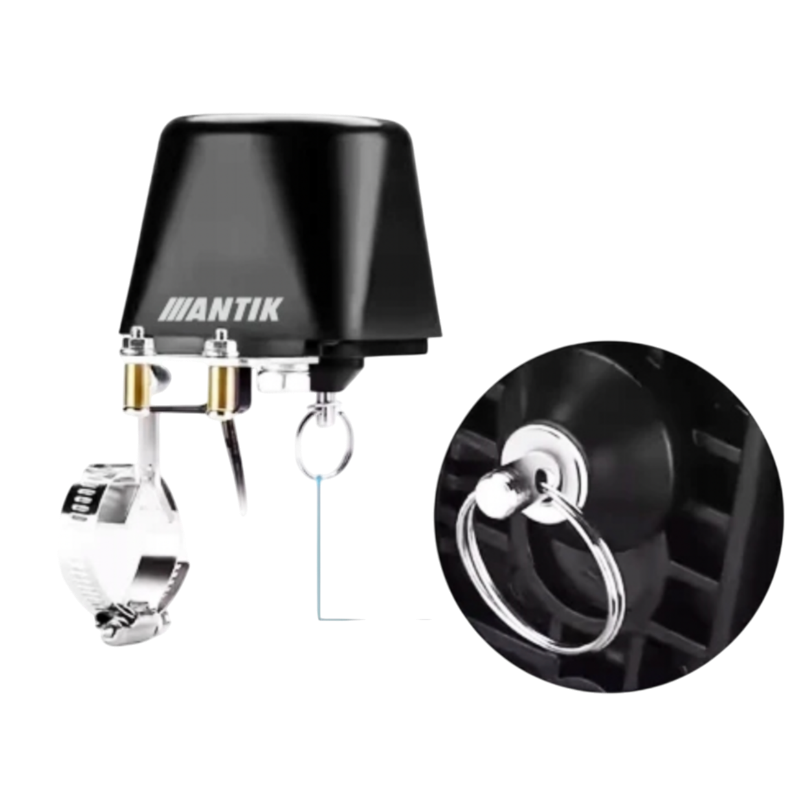

Can the valve be operated manually?
Yes, if necessary (e.g. power or network outage), the valve can also be operated manually via a lever.
